Integration Advisor : Use of cXML Type System Exporting to CPI

WRITTEN BY

Sonali S Dash

PUBLISHED​

10th June 2022

INTEGRATION

SHARE

Introduction

  • The integration content advisor of SAP Cloud Platform is a mapping tool along with cloud and crowd-based design
  • It provides intelligent and efficient integration content creation and maintenance at the business domain level to support experts
  • Artificial intelligence (AI) supports the entire approach with more flexibility and higher quality
  1. Scenario :

    Create EDI Interface for Library Type System using cXML(commerce eXtensible Markup Language) to Export into CPI.

    Solution :

    Let’s begin with the scenario. Follow the steps and images.

    1 – Add the capability Integration Advisor in SAP BTP Cockpit and open the portal

integration advisor

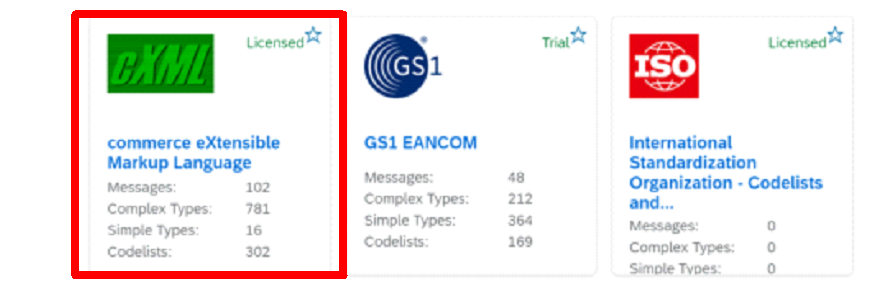

2 – Choose  Library of Type System-cXML which is a licensed version.It has 17 varieties of version, 102 messages,781 Complex Types, 16 Simple Types, 302 Codelists available. cXML Type system is available in trail account as unlimited licensed.So there is no time frame.

Commerce Extensible markup language
3 – Create Message Implementation Guidelines(MIGs) for source and receiver.Here the scenario is concentrating on Authorization Request from sender and Authorization response from receiver end.
cXML AuthResponse Receiver

4 – Create Mapping Guidelines (MAGs) to show mapping specifications between source and target MIGs.It can be used for internal purpose or can be shared with trading partners for reference.

commerce eXtensible Markup Language
meassages of cXML
authresponse receiver
5 – Choose the version 1.2.040 of cXML Type System- AuthRequest. Direction should be “out” and follow map own business context and partner business context
auth request
own business context
partner business context

6 – Next step to add Proposals for AuthRequest Source side and confirm it

authresponse receiver
7 – Repeat the same step for AuthResponse Target Side and confirm it
authresponse receiver

8 – Now Select Source and Target MIGs and map it

authresponse receiver
authresponse receiver
9 – Export SAP Cloud Integration Runtime Artifacts
auth response receiver

10 – Go to Integration Suite and open the Template EDI Integration Template for SAP Integration Advisor and select cXML to SAP IDOC Inbound artifacts

SAP Integration Advisor

11 – The below is extracted version of exported Mapping Artifacts

authrequest sender

12 – Upload Sender file and Receiver file appropriately along with Pre-Processing and Post-Processing

authrequest sender

13 – Upload the files like Read cXML Parameters,cXML Preprocessing,cXML Mapping,Qualifier Post-Processing and Configure with passing all parameters/required parameters

integration process

14 – Once configuration done and extracted with messages then save as version and deploy it.

Conclusion:

There are more possible method to have communication with B2B integration in SAP Integration Suite using variety adapters for trial and subscribe accounts.

Summary:

This Blog covers, what the Integration Advisor and how to create MAG,MIG and Mapping process from cXML source to cXML target side.

If you have any questions, feedback or thoughts please let me know in the comment section.

So keep trying…

Happy Learning…

Please follow the below sites:

1 – To know more about Integration Advisor

Integration Advisor Capability of SAP Integration Suite | openSAP

2 – To know more about Integration Suite Topic Page

https://community.sap.com/topics/integration-suite

3 – To answer questions about SAP Integration Suite

https://answers.sap.com/tags/73554900100800003241

4 – To read other blog post

https://blogs.sap.com/tags/73554900100800003241
